Hot-pressed Sintered Cup Wheel

Engineered with high-quality industrial diamond grits for maximum grinding performance. Optimized hole pattern for fast dust removal.
  • Hot-pressed Sintered  Turbo  Cup Wheel

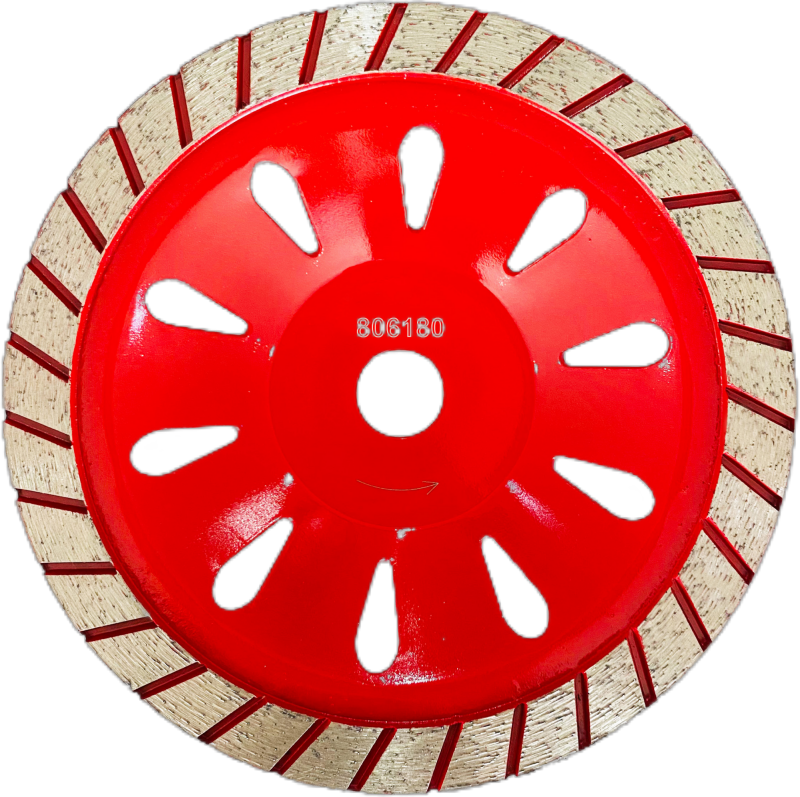

    Hot-pressed Sintered Turbo Cup Wheel 806 Series

    Designed for:
    Coating removal, grinding, and leveling the surface of concrete, masonry, and other natural stone.
    Main Features More info
    •Engineered with high-quality industrial diamond grits for maximum grinding performance.
    •The innovative turbo design allows fast coating removal to gain a smooth surface.
    •Optimized hole pattern for fast dust removal.
    •Suitable for angle grinders.
    LevelProduct
    Code
    Diameter
    (mm)
    Segment Dimension(L*W*H mm)Segment Qty.Arbor
    (mm)
    Premium806105A105mm/4"3.5*10-22.23
    806115A115mm/4.5"3.5*10-22.23
    806125A125mm/5"3.5*12-22.23
    806180A180mm/7"3.5*15-22.23
    Standard806105C105mm/4"3.5*10-22.23
    806115C115mm/4.5"3.5*10-22.23
    806125C125mm/5"3.5*12-22.23
    806180C180mm/7"3.5*15-22.23
  • Hot-pressed Sintered Segmented  Cup Wheel

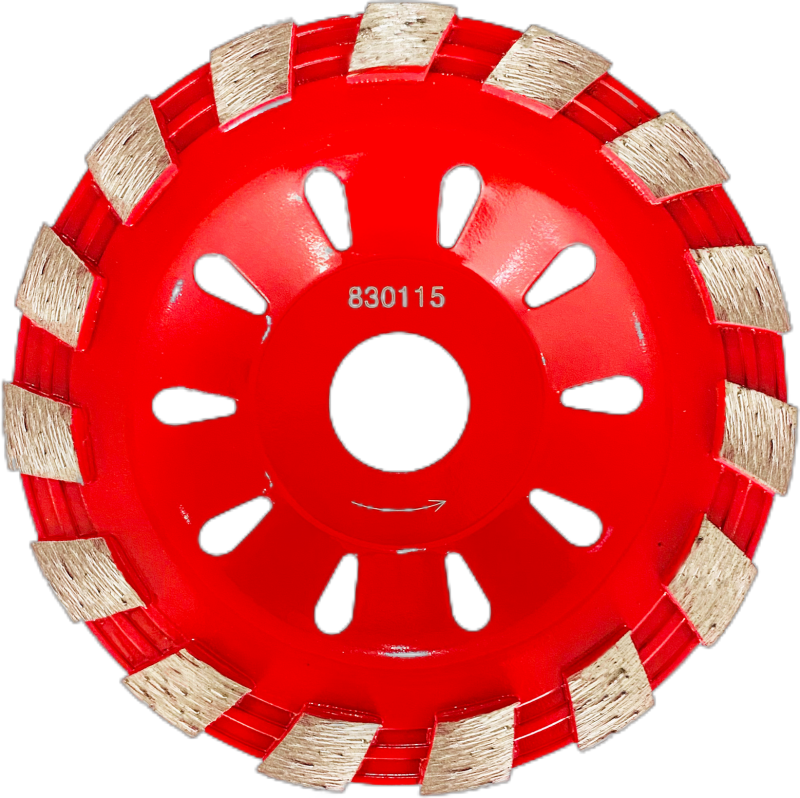

    Hot-pressed Sintered Segmented Cup Wheel 830 Series

    Designed for:
    Coating removal, grinding, and leveling the surface of concrete, masonry, and other natural stone.
    Main Features More info
    • Engineered with high-quality industrial diamond grits for maximum grinding performance.
    • The classic segmented design allows fast coating removal to gain a smooth surface.
    • Optimized hole pattern for fast dust removal.
    • Suitable for angle grinders.
    Level            Product Code            Diameter(mm)            Segment Dimension(L*W*H mm)            Segment Qty.            Arbor (mm)
    Premium            830105A            105mm/4"3.5*10            14            22.23
    830115A            115mm/4.5"3.5*10            15            22.23
    830125A            125mm/5"3.5*12            16            22.23
    830180A            180mm/7"3.5*15            20            22.23
    Standard            830105C            105mm/4"3.5*10            14            22.23
    830115C            115mm/4.5"3.5*10            15            22.23
    830125C            125mm/5"3.5*12            16            22.23
    830180C            180mm/7"3.5*15            20            22.23
