CORE BIT

Diamond Core Bit
  • Turbo Segment Core Bits

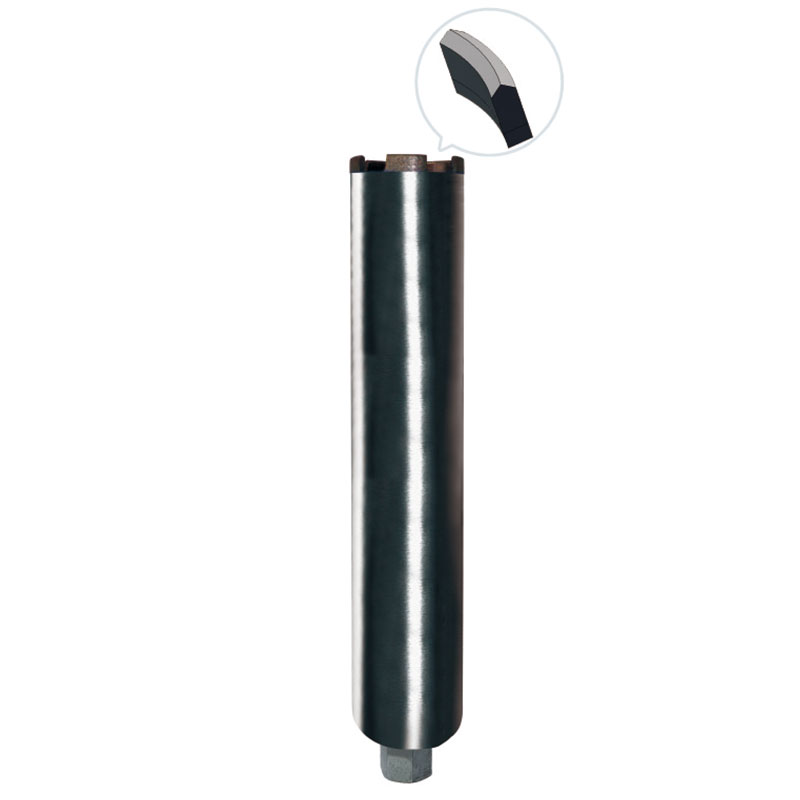

    Turbo Segment Core Bits 712 Series

    Designed for:
    Variety of concrete,reinforced concrete,brick and other building materials.
    Main Features More info
    The professional quality concrete core bits are engineered with turbo laser welded sgements which provide additional aggressiveness and long cutting service. Coupled with high concentration and grade of diamond,the turbo segment core bits provide high cost-effective and incredible drilling through a wide range of materials.
    Product No.    Dia.(mm) Segment
    Dimension
    (LxWxH mm)
    Segment
    Qty.
    Connector Valid Length
    (mm)
    712025 25 24X3.5X10 3 1¼” - 7 450
    712032 32 24X3.5X10 4 1¼” - 7 450
    712037 37 24X3.5X10 4 1¼” - 7 450
    712052 52 24X3.5X10 5 1¼” - 7 450
    712063 63 24X3.5X10 6 1¼” - 7 450
    712076 76 24X3.5X10 6 1¼” - 7 450
    712089 89 24X3.7X10 7 1¼” - 7 450
    712102 102 24X3.7X10 8 1¼” - 7 450
    712152 152 24X3.7X10 11 1¼” - 7 450
    712200 200 24X4,0X10 14 1¼” - 7 450
    712250 250 24X4,0X10 18 1¼” - 7 450
    712300 300 24X4,0X10 22 1¼” - 7 450


  • Roof Segment Core Bits

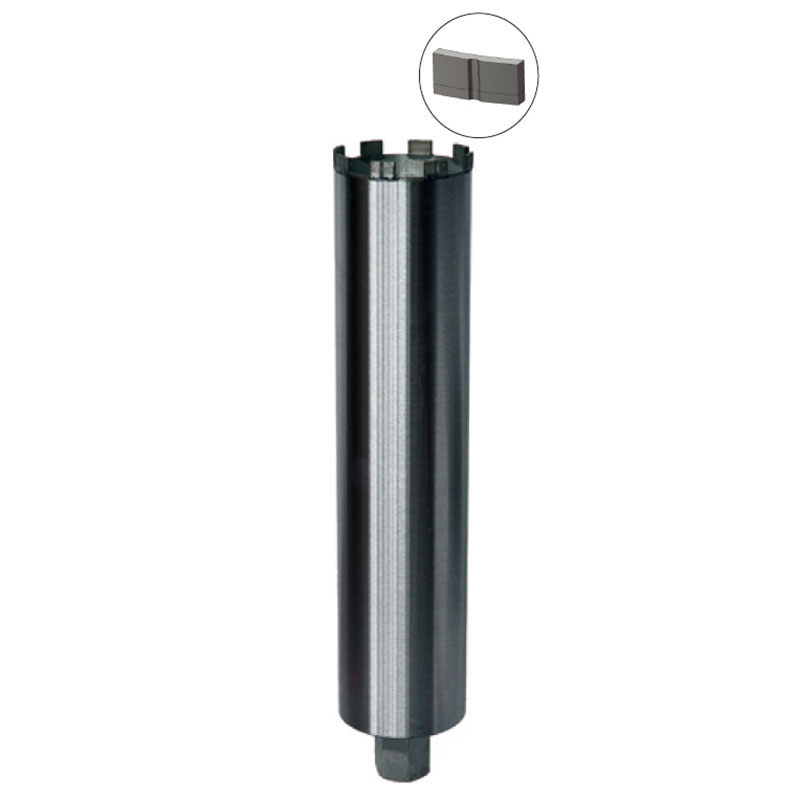

    Roof Segment Core Bits 701 Series

    Designed for:
    Variety of concrete,reinforced concrete,brick and other building materials.
    Main Features More info
    The professional quality concrete core bits are engineered with quick-starting V-shape laser welded segments and contain high cencentrations of top grade diamonds,combined with a special blend of metal powders to provide an excellent cost performance value with extremely fast cutting and long life.
    Product No.   Dia.(mm)Segment
    Dimension
    (LxWxH mm)
    Segment
    Qty.
    ConnectorValid Length
    (mm)
    7010252518x3.5x1031¼” - 7450
    7010323218x3.5x1041¼” - 7450
    7010373718x3.5x1051¼” - 7450
    7020525224X3.5X1051¼” - 7450
    7020636324X3.5X1061¼” - 7450
    7020767624X3.5X1071¼” - 7450
    7020898924X3.5X1081¼” - 7450
    70210210224X4.0X1081¼” - 7450
    70210810824X4.0X1081¼” - 7450
    70212712724X4.0X10111¼” - 7450
    70213213224X4.0X10111¼” - 7450
    70215215224X4.0X10131¼” - 7450
    70216216224X4.0X10141¼” - 7450
    70220020024X4.5X10161¼” - 7450
    70225025024X4.5X10191¼” - 7450
    70230030024X5.0X10221¼” - 7450
