SAW BLADE

Laser-welded Blade,Hot-pressed Sintered Blade
  • Laser-welded Segmented Blade

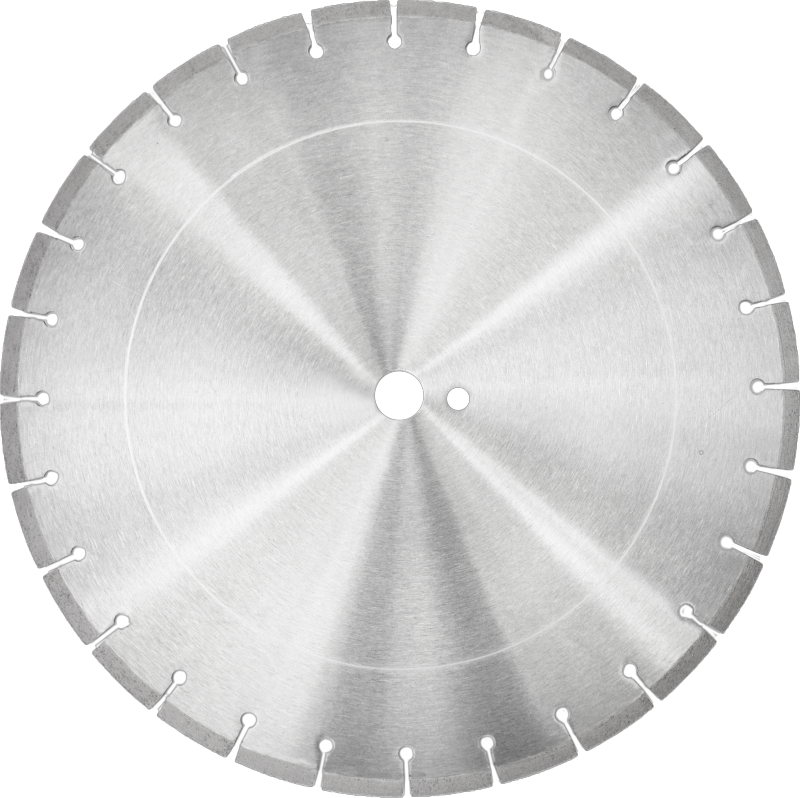

    Laser-welded Segmented Blade 101 Series

    Designed for:
    Concrete, reinforced concrete, brick, block, masonry, stone and other building materials.
    Main Features More info
    •Multi-purpose for faster and smoother cutting with longer life.
    •The core is made from heat-treated steel and is guaranteed to withstand the demands of dry cutting. Wet cutting provides better performance and reduces dust effectively.
    •Suitable for cutting equipment such as circular saw, hand-held power saw, table saw, and walk-behind saw etc.
    LevelProduct
    Code
    Diameter
    (mm)
    Segment Dimension(L*W*H mm)Segment Qty.Arbor
    (mm)
    Supreme101300A300mm/12"40*3.2*102125.4
    101350A350mm/14"40*3.2*102425.4
    101400A400mm/16"40*3.2*102825.4
    101450A450mm/18"40*3.6*123225.4
    101500A500mm/20"40*3.6*123625.4
    Classic101300C300mm/12"40*3.2*102125.4
    101350C350mm/14"40*3.2*102425.4
    101400C400mm/16"40*3.2*102825.4
    101450C450mm/18"40*3.6*123225.4
    101500C500mm/20"40*3.6*123625.4
  • Laser-welded Turbo  Blade

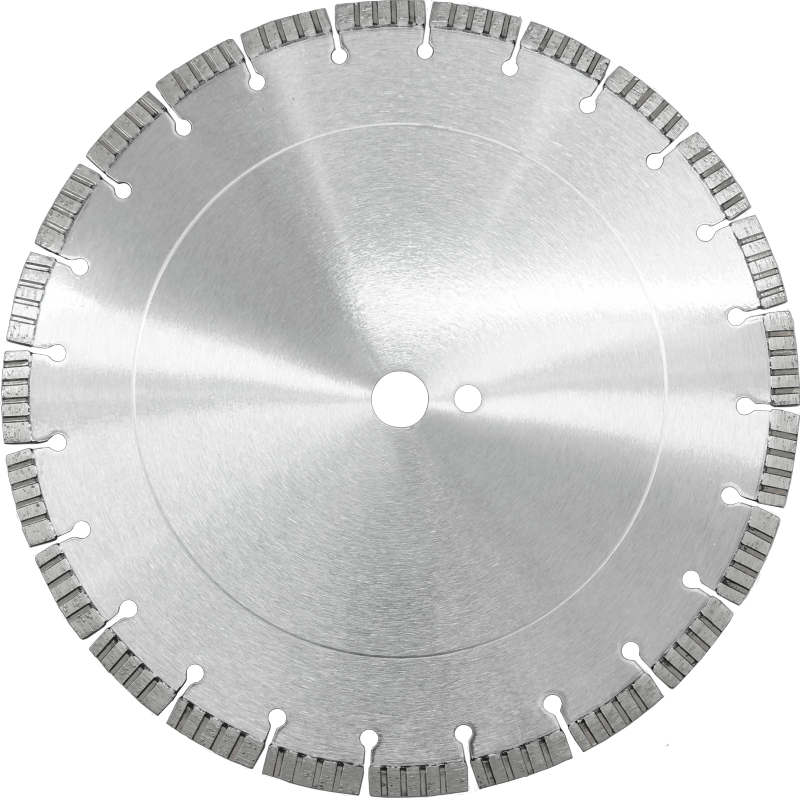

    Laser-welded Turbo Blade 121 Series

    Designed for:
    Concrete, reinforced concrete, brick, block, masonry, stone and other building materials.
    Main Features More info
    •Turbo segment with excellent cutting speed, better cooling and better dust removal.
    •High-quality turbo segment for fast, smooth, force cutting of reinforced concrete, cured concrete, masonry,and stone.
    •The core is made from heat-treated steel and is guaranteed to withstand the demands of dry cutting. Wet cutting provides better performance and reduces dust effectively.
    •Suitable for cutting equipment such as circular saw, hand-held power saw, table saw, and walk-behind saw etc.
    LevelProduct
    Code
    Diameter
    (mm)
    Segment Dimension(L*W*H mm)Segment Qty.Arbor
    (mm)
    Supreme121300A300mm/12"40*3.2*102125.4
    121350A350mm/14"40*3.2*102425.4
    121400A400mm/16"40*3.2*102825.4
    121450A450mm/18"40*3.6*123225.4
    121500A500mm/20"40*3.6*123625.4
    Classic121300C300mm/12"40*3.2*102125.4
    121350C350mm/14"40*3.2*102425.4
    121400C400mm/16"40*3.2*102825.4
    121450C450mm/18"40*3.6*123225.4
    121500C500mm/20"40*3.6*123625.4
  • Laser-welded Wave & Arrow Blade

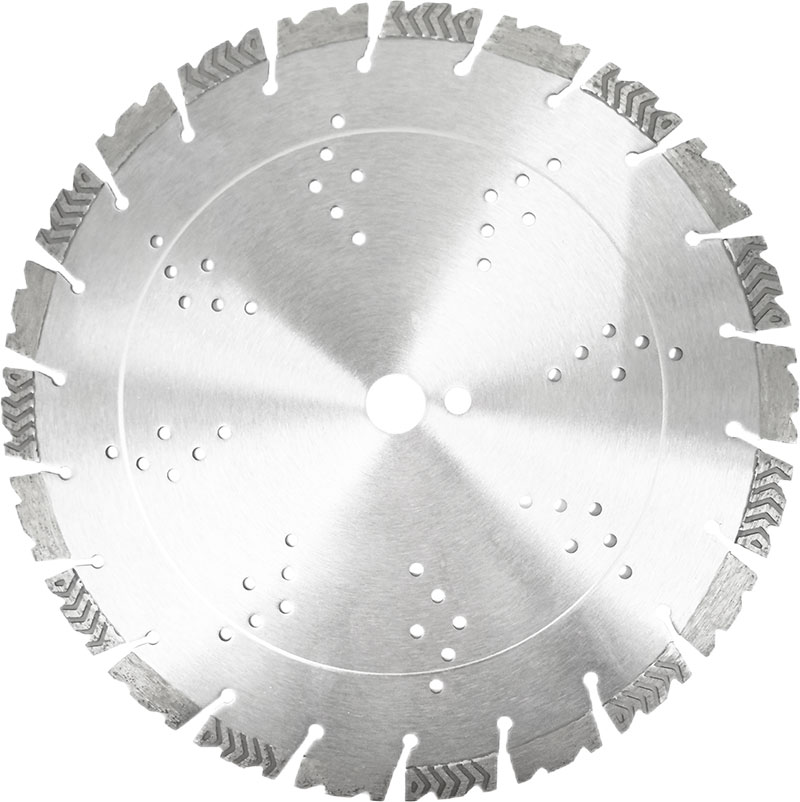

    Laser-welded Wave & Arrow Blade 129 Series

    Designed for:
    Concrete, reinforced concrete, brick, block,masonry, stone and other building materials.
    Main Features More info
    •Unique two-sided design of each segment with flatness and arrow pattern provides
    excellent cutting speed with better cooling and dust removal performance.
    •Achieving fast, smooth and force cutting of reinforced concrete, cured concrete, masonry, and stone.
    •The core is made from heat-treated steel and is guaranteed to withstand the demands of dry cutting. Wet cutting provides better performance and reduces dust effectively.
    •Suitable for cutting equipment such as circular saw, hand-held power saw, table saw, and walk-behind saw etc.
    LevelProduct
    Code
    Diameter
    (mm)
    Segment Dimension(L*W*H mm)Segment Qty.Arbor
    (mm)
    Supreme129300A300mm/12"40*3.2*152025.4
    129350A350mm/14"40*3.2*152225.4
    129400A400mm/16"40*3.2*152625.4
    Classic129300C300mm/12"40*3.2*152025.4
    129350C350mm/14"40*3.2*152225.4
    129400C400mm/16"40*3.2*152625.4
  • Laser-welded  Segmented Blade  with Undercut

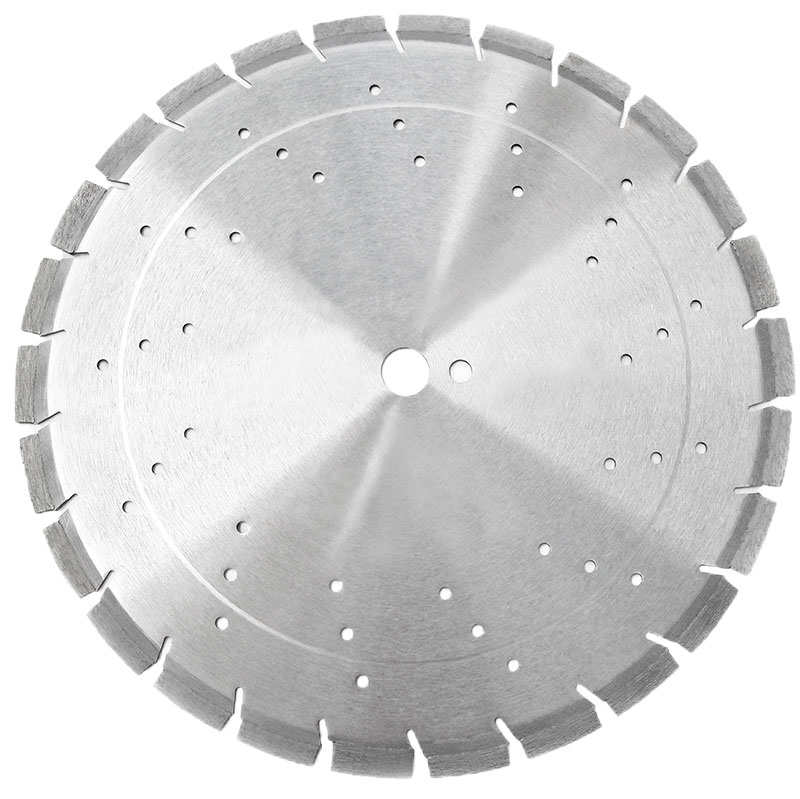

    Laser-welded Segmented Blade with Undercut 140 Series

    Designed for:
    Asphalt, reinforced concrete, green concrete, hard brick, pavers, block, masonry, stone and other abrasive materials.
    Main Features More info
    •This high-quality blade with undercut applies for the widest range of materials.
    •Drop segments provide undercut protection and longer life when working with abrasive materials such as asphalt and green concrete. Heavy duty industrial grade steel core allows cutting through hard materials without concerns of core cracking on the slot area.
    •The core is made from heat-treated steel and is guaranteed to withstand the demands of dry cutting. Wet cutting provides better performance and reduces dust effectively.
    •Suitable for cutting equipment such as circular saw, hand-held power saw, table saw, and walk-behind saw etc.
    LevelProduct
    Code
    Diameter
    (mm)
    Segment Dimension(L*W*H mm)Segment Qty.Arbor
    (mm)
    Supreme140300A300mm/12"40*3.2*10(15)17+325.4
    140350A350mm/14"40*3.2*10(15)21+325.4
    140400A400mm/16"40*3.2*10(15)23+325.4
    140450A450mm/18"40*3.6*12(17)27+425.4
    140500A500mm/20"40*3.6*12(17)30+425.4
    Classic140300C300mm/12"40*3.2*10(15)17+325.4
    140350C350mm/14"40*3.2*10(15)21+325.4
    140400C400mm/16"40*3.2*10(15)23+325.4
    140450C450mm/18"40*3.6*12(17)27+425.4
    140500C500mm/20"40*3.6*12(17)30+425.4
  • Laser-welded  Segmented Turbo Blade  with Undercut

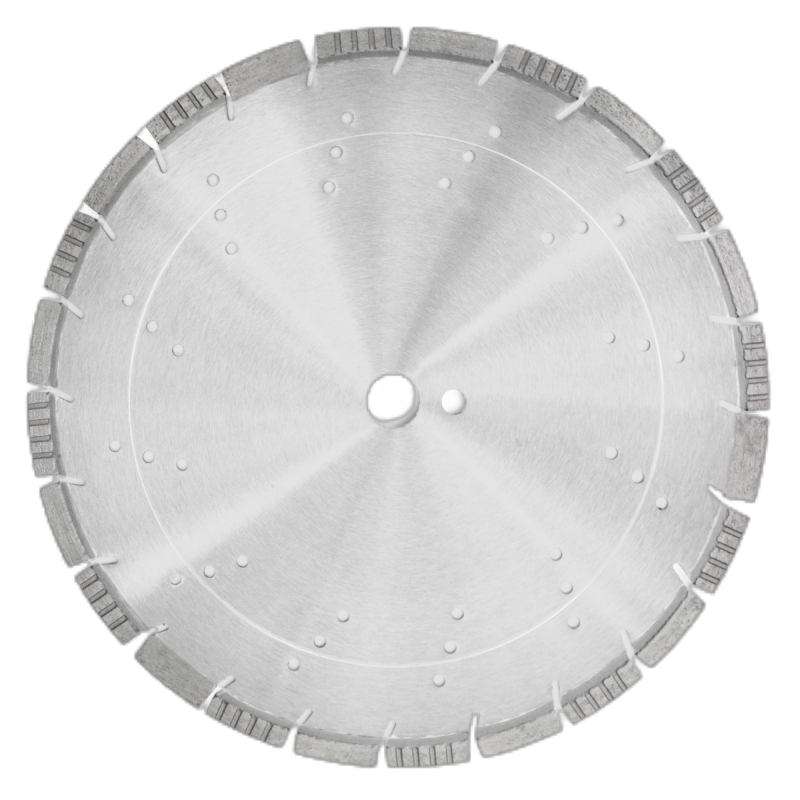

    Laser-welded Segmented Turbo Blade with Undercut 144 Series

    Designed for:
    Asphalt, reinforced concrete, green concrete, hard brick, pavers, block, masonry, stone and other abrasive materials.
    Main Features More info
    •This high-quality blade with alternating turbo, segmented and drop segment provides free cutting and longer life when working with abrasive and hard materials.
    •Unique segment design allows better air cooling effect, resulting in better performance with less stress on the operator and machine.
    •The core is made from heat-treated steel and is guaranteed to withstand the demands of dry cutting. Wet cutting provides better performance and reduces dust effectively.
    •Suitable for cutting equipment such as circular saw, hand-held power saw, table saw, and walk-behind saw etc.
    LevelProduct
    Code
    Diameter
    (mm)
    Segment Dimension(L*W*H mm)Segment Qty.Arbor
    (mm)
    Supreme144300A300mm/12"40*3.2*10(15)17+325.4
    144350A350mm/14"40*3.2*10(15)21+325.4
    144400A400mm/16"40*3.2*10(15)23+325.4
    144450A450mm/18"40*3.6*12(17)27+425.4
    144500A500mm/20"40*3.6*12(17)30+425.4
    Classic144300C300mm/12"40*3.2*10(15)17+325.4
    144350C350mm/14"40*3.2*10(15)21+325.4
    144400C400mm/16"40*3.2*10(15)23+325.4
    144450C450mm/18"40*3.6*12(17)27+425.4
    144500C500mm/20"40*3.6*12(17)30+425.4
